TW Laundry

TW1000 Modular Laundry
  • Sink and Drainer 1200mm
  • Washer
  • Dryer Stacked
  • Flatwork Ironer
  • Storage Cupboard with Worktop Over
  • Wall Cupboard
  • Storage Racking 900mm

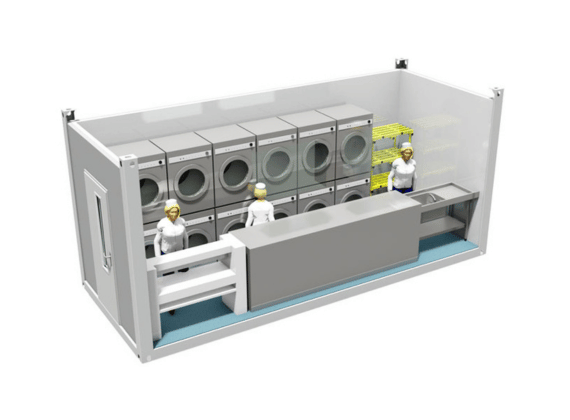

The TWL laundry module contains high capacity machines, which are ideal for the heavy usage expected in camps. The washer/dryer laundry machines use single phase electrics and are self-heating, so not external hot water is required.

Each washer and each dryer has a 10kg capacity per cycle, with each cycle lasting 40 minutes. Assuming a complete wash and load cycle time of 60 minutes, each washer dryer machine will process 100kg of washing per day, based on a 10 hour working day.

This laundry module design includes six washer/dryer machines, so will therefore process a total of 600kg per day or 4,200kg per week. Assuming each person has 12kg of washing per week, this laundry unit can cater for a camp of up to 350 men.

Kitchen Construction Options

Our Transworld Kitchens are either supplied as modular or ISO rated container facilities. Modular kitchens can be supplied pre-built or in flat pack format and offer the advantage of a speedy construction, while our ISO rated kitchens are supplied pre-built and comply with the latest international shipping regulations for transportation. Click on the tabs below to find out more about each construction type.

Modular Transworld kitchenPKL modular kitchens offer fast track kitchen and dining buildings which are quick and simple to install on site. The buildings comply with international construction standards and are shipped either fully erected or in flatpack format for the most cost effective results.

Key Features

  • Prefabricated off site for quality control and rapid site installation
  • Built to international construction standards
  • ISO registered building unit and flatpack shipping system

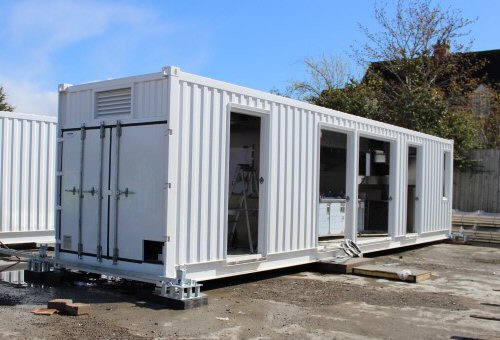

ISO Rated Container KitchenOur ISO kitchens are containerised solutions which conform to standard shipping sizes and specifications and can be easily shipped worldwide. Due to their construction, they are strong and sturdy and arrive ready for immediate use.

Key Features

  • Bespoke design created to meet each client’s required size and specifications
  • Built to international ISO shipping container standards, so easily transported by land, sea, air or rail
  • Delivered fully constructed and ready for immediate use
  • Strong and durable with 25+ year lifespan
  • Easily relocatable
