TW 800 Kitchen with Dining

TW 800 Modular Kitchen and Dining Facility

The TW800D is an eight unit modular portable kitchen which can be delivered within six weeks of order. The TW800D us also supplied with a dining area to seat over 300 people, which includes space for a full servery line, till points, and WC facilities.

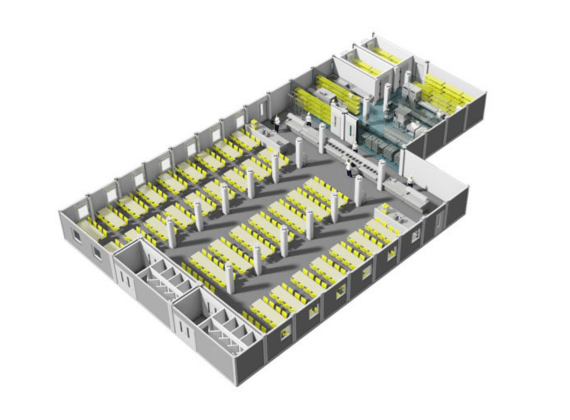

The standard facility illustrated provides a large open plan kitchen, additional storage space and provides a greater amount of built in refrigeration and freezer space. This facility can be used to supply up to 2,500 meals per day and is available either a modular facility or can be supplied as an ISO rated containerised kitchen.

Although we have illustrated a standard range of equipment, we can supply this facility with your choice of catering equipment to suit your requirements.

Dimensions and Equipment

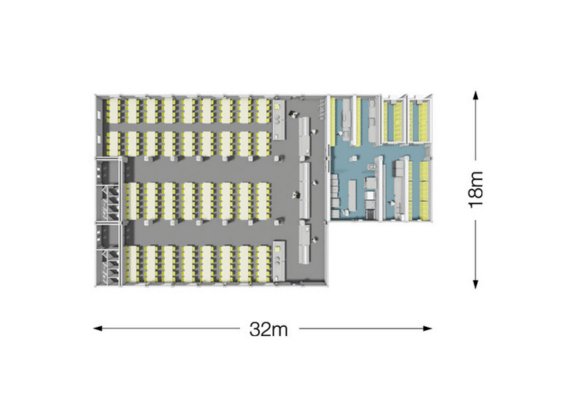

TW 800 Modular Kitchen and Dining Plan
  • Storage Racking 1800mm
  • Water Heater
  • Sterilising Sink 2700mm
  • Ambient Servery 1945mm
  • Hot Servery 1800mm
  • Six Slot Toaster
  • Gastronorm Table Trolley 450mm
  • Wash Hand Basin – Wall Mounted – 385mm
  • Refrigerated Servery 1800mm
  • Beverage Water Boiler 120
  • Table 4-Seater
  • Chair
  • Fly Killer
  • Mobile Tray Dispenser
  • Mobile Cutlery Dispenser
  • Wall Shelf 1200mm
  • Iced Drinks Dispenser
  • Upright Refrigerator 400lt – Bottom Mounted Compressor
  • Upright Freezer 400lt – Bottom Mounted Compressor
  • Wall Table 1800mm
  • Catering Sink & Whb 2400 X 600mm
  • Chemical Storage Cupboard 1200mm
  • Water Heater – 3ph
  • Cold Servery – Countertop
  • Dirties Return Stacking System
  • Combination Oven 20 Grid
  • Bratt Pan 80lt – Electric
  • Boiling Pan 150lt – Electric
  • Griddle 900mm Electric
  • Preparation Table 1500mm
  • Rack Dishwasher 150 Basket/Hr – Left To Right
  • Storage Racking 1500mm
  • Solid Top Range – Electric50bmixer 40qt
  • Deep Fat Fryer – Electric
  • Calcium Treatment Unit 18lt
  • Water Softener. Automatic

Kitchen Construction Options

Our Transworld Kitchens are either supplied as modular or ISO rated container facilities. Modular kitchens can be supplied pre-built or in flat pack format and offer the advantage of a speedy construction, while our ISO rated kitchens are supplied pre-built and comply with the latest international shipping regulations for transportation. Click on the tabs below to find out more about each construction type.

Modular Transworld kitchenPKL modular kitchens offer fast track kitchen and dining buildings which are quick and simple to install on site. The buildings comply with international construction standards and are shipped either fully erected or in flatpack format for the most cost effective results.

Key Features

  • Prefabricated off site for quality control and rapid site installation
  • Built to international construction standards
  • ISO registered building unit and flatpack shipping system
ISO Rated Container KitchenOur ISO kitchens are containerised solutions which conform to standard shipping sizes and specifications and can be easily shipped worldwide. Due to their construction, they are strong and sturdy and arrive ready for immediate use.

Key Features

  • Bespoke design created to meet each client’s required size and specifications
  • Built to international ISO shipping container standards, so easily transported by land, sea, air or rail
  • Delivered fully constructed and ready for immediate use
  • Strong and durable with 25+ year lifespan
  • Easily relocatable
