TW 200 Kitchen

TW 200 Modular Kitchen

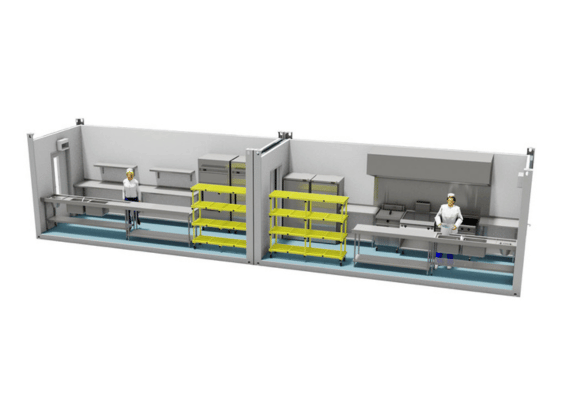

The TW200 is a two unit portable modular kitchen which can be delivered within six weeks of order. The standard facility layout is split into a production kitchen and a preparation kitchen area and can be used to supply up to 1,000 meals per day. The TW200 kitchen is available as either a modular facility or can be supplied as an ISO rated containerised kitchen.

A dining facility can also be attached to this kitchen if required.

Although we have illustrated a standard range of equipment, we can supply this facility with your choice of catering equipment to suit your requirements.

Dimensions and Equipment

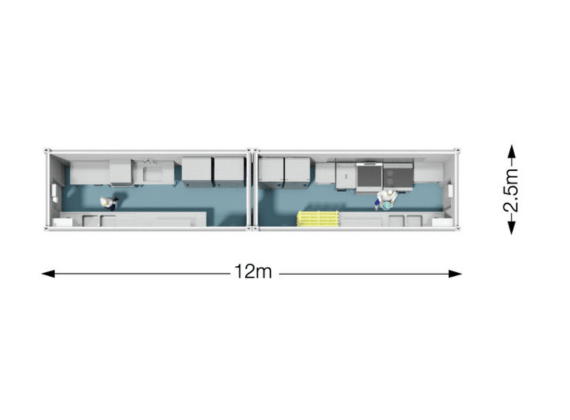

TW 200 Modular Kitchen Plan
  • Storage Racking 1800mm
  • Water Heater
  • Upright Refrigerator 610lt
  • Upright Freezer 610lt
  • Fly Killer
  • Wall Shelf 1200mm
  • Upright Refrigerator 400lt
  • Upright Freezer 400lt
  • Wall Table 900mm
  • Wall Table 1800mm
  • Catering Sink & Whb 1800 X 600mm
  • Catering Sink & Whb 2400 X 600mm
  • Griddle 900mm Electric
  • Storage Racking 1500mm
  • Solid Top Range – Electric
  • Deep Fat Fryer – Electric
  • Extraction System

Kitchen Construction Options

Our Transworld Kitchens are either supplied as modular or ISO rated container facilities. Modular kitchens can be supplied pre-built or in flat pack format and offer the advantage of a speedy construction, while our ISO rated kitchens are supplied pre-built and comply with the latest international shipping regulations for transportation. Click on the tabs below to find out more about each construction type.

Modular Transworld kitchenPKL modular kitchens offer fast track kitchen and dining buildings which are quick and simple to install on site. The buildings comply with international construction standards and are shipped either fully erected or in flatpack format for the most cost effective results.

Key Features

  • Prefabricated off site for quality control and rapid site installation
  • Built to international construction standards
  • ISO registered building unit and flatpack shipping system
ISO Rated Container KitchenOur ISO kitchens are containerised solutions which conform to standard shipping sizes and specifications and can be easily shipped worldwide. Due to their construction, they are strong and sturdy and arrive ready for immediate use.

Key Features

  • Bespoke design created to meet each client’s required size and specifications
  • Built to international ISO shipping container standards, so easily transported by land, sea, air or rail
  • Delivered fully constructed and ready for immediate use
  • Strong and durable with 25+ year lifespan
  • Easily relocatable
