TW 400 Kitchen

TW 400 Kitchen

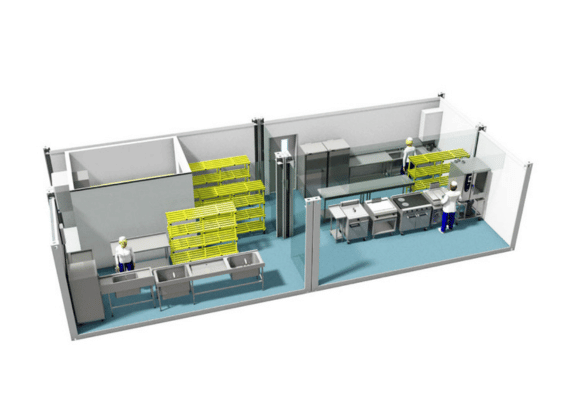

The TW400 is a four unit modular portable kitchen which can be delivered within six weeks of order. The standard facility illustrated provides an open plan kitchen area, separate warewashing space and a built in cold storage and can be used to supply up to 1,500 meals per day. The TW400 kitchen is available as either a modular facility or can be supplied as an ISO rated containerised kitchen.

A dining facility can also be attached to this kitchen if required.

Although we have illustrated a standard range of equipment, we can supply this facility with your choice of catering equipment to suit your requirements.

Dimensions and Equipment

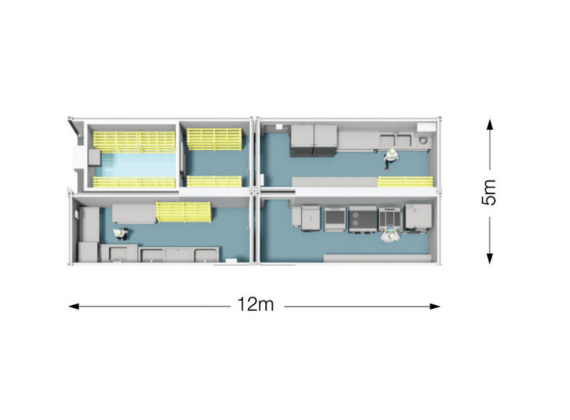

TW 400 Plan
  • Water Heater
  • Upright Refrigerator 610lt
  • Upright Freezer 610lt
  • Ambient Servery 1800mm
  • Hot Servery 1945mm
  • Beverage Water Boiler 120
  • Table 4-Seater
  • Chairs
  • Fly Killer
  • Wall Shelf 1200mm
  • Iced Drinks Dispenser
  • Upright Refrigerator 400lt – Bottom Mounted Compressor
  • Upright Freezer 400lt – Bottom Mounted Compressor
  • Wall Table 600mm
  • Wall Table 900mm
  • Catering Sink & Whb 1800 X 600mm
  • Catering Sink & Whb 2400 X 600mm
  • Wall Table 1450mm
  • Wall Table 2400mm
  • Wall Table 2100mm
  • Cold Servery – Countertop
  • Dirties Return Stacking System
  • Griddle 900mm Electric
  • Hood Dishwasher 3-Phase – Right To Left
  • Ambient Servery 1500mm
  • Storage Racking 1200mm
  • Solid Top Range – Electric
  • Deep Fat Fryer – Electric
  • Extraction System
  • Water Softener. Automatic

Kitchen Construction Options

Our Transworld Kitchens are either supplied as modular or ISO rated container facilities. Modular kitchens can be supplied pre-built or in flat pack format and offer the advantage of a speedy construction, while our ISO rated kitchens are supplied pre-built and comply with the latest international shipping regulations for transportation. Click on the tabs below to find out more about each construction type.

Modular Transworld kitchenPKL modular kitchens offer fast track kitchen and dining buildings which are quick and simple to install on site. The buildings comply with international construction standards and are shipped either fully erected or in flatpack format for the most cost effective results.

Key Features

  • Prefabricated off site for quality control and rapid site installation
  • Built to international construction standards
  • ISO registered building unit and flatpack shipping system
ISO Rated Container KitchenOur ISO kitchens are containerised solutions which conform to standard shipping sizes and specifications and can be easily shipped worldwide. Due to their construction, they are strong and sturdy and arrive ready for immediate use.

Key Features

  • Bespoke design created to meet each client’s required size and specifications
  • Built to international ISO shipping container standards, so easily transported by land, sea, air or rail
  • Delivered fully constructed and ready for immediate use
  • Strong and durable with 25+ year lifespan
  • Easily relocatable
